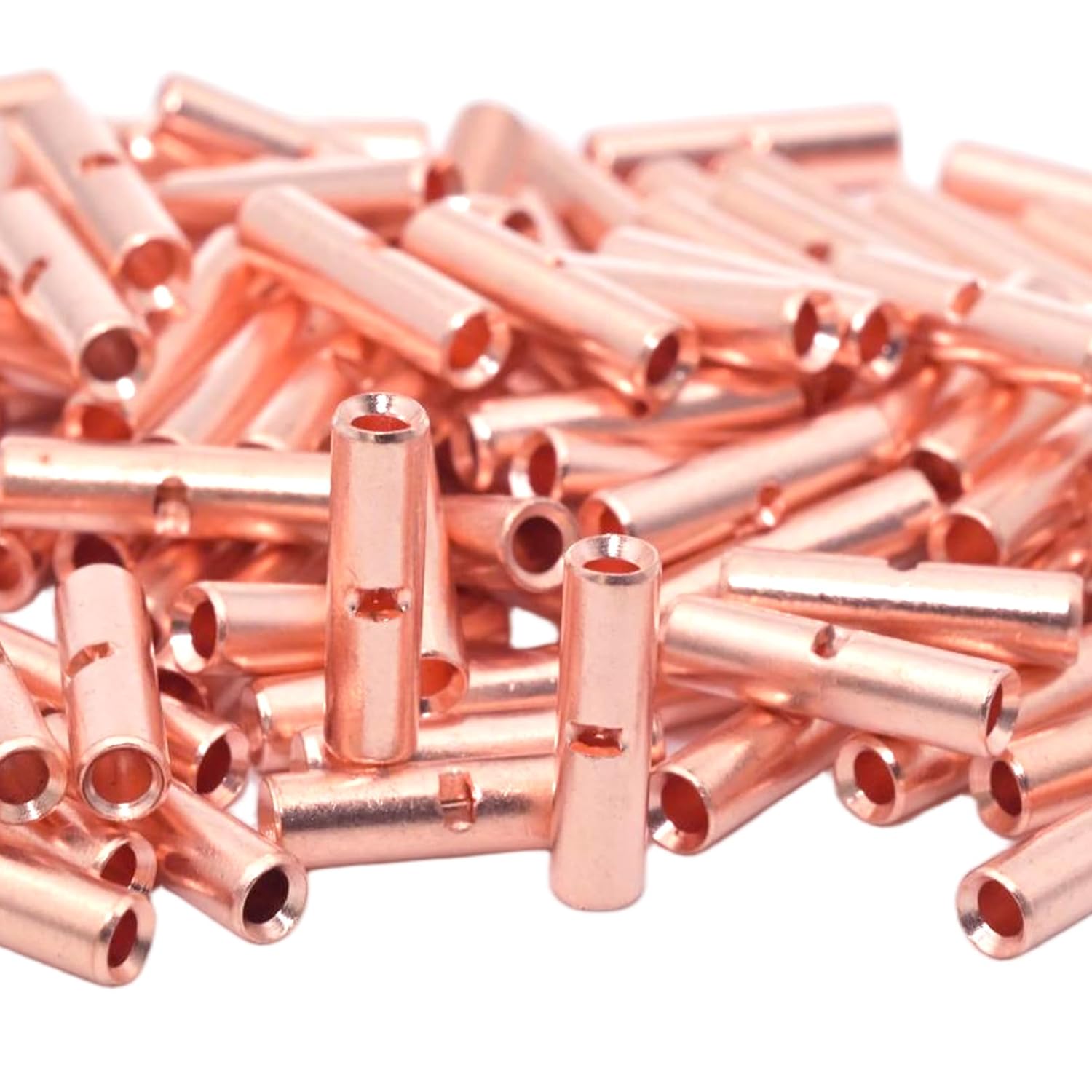

SVAAR 6 PCS 000 Gauge Non Insulated Butt Connectors 3/0 AWG Uninsulated Butt Splice Connectors Crimp Repair Butt Splices Kit Bare Pure Copper Seamless Barrel Splice Terminals & 6PCS 3:1 Heat Shrinks
Product details
| Management number | 218114006 | Release Date | 2026/05/03 | List Price | $8.40 | Model Number | 218114006 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Package Includes - 6 PCS 3/0 (000) Gauge(3/0 AWG) Bare Pure Copper Butt Splice Connectors. Rated For 600 Volts. Designed to fit stranded or flexibly stranded copper wire and cable. Can be CRlMPED or SOLDERED - ideal for most applications. Crimped for Mechanical Reliability. Soldered for Strength & Conductivity. One More Thing: We provide 6 PCS 3:1 Dual Wall Adhesive Heat Shrink Tubing Tube for your work (3 PCS Black, 3 PCS Red color). Sealed for Maximum Durability.
- T2 PURPLE COPPER MATERIAL - SVAAR butt splice connectors are constructed from low-resistivity T2 purple copper, with a specially treated surface for corrosion protection. Featuring a 99.9% pure purple copper structure, they deliver excellent conductivity, ensuring a high degree of electrical performance for maximum current flow.
- 100% ANNEALED COPPER - All SVAAR butt splice connectors are crafted from 100% annealed electrolytic-grade copper. These connectors undergo annealing at a precise temperature to enhance material properties, enabling better crimping performance and reducing the risk of breakage during the crimping process.
- SAFER DESIGNED-STRONG CRIMPS - These butt splices are sized and designed to work with stranded or flexibly stranded copper wire and cable. Our butt splices terminals Conform to UL486 standard, Thick material ensure super strong crimps, and prevent your wire from slipping out. Electrical splicing non-insulated butt splice connectors are built with a wire stop barrier on center, ensures the effect of compression.
- EXCELLENT CONDUCTIVITY - Our butt splices are made of pure copper. Bare pure copper offers the highest electrical performance relative to its price compared to any other metal. Pure copper butt splice connectors ensure the best-performing electrical connection between your power sources and power cables.
- WIDELY APPLICATION - Butt Connector Terminals are used to mate,connect, or terminate a single wire or multiple wires.Butt Connectors are commonly used in vehicle applications, such as automotive and marine, but can also be used on various electrical applications that require a wire connection.
- HOW TO CHOOSE AND USE Butt Splices? - Check butt splices' dimensions (inner diameter, crimp length, gauge range) for proper fit—poor fit harms conductivity/strength. Crimp with gauge-matching butt splices, using a calibrated tool and steady pressure. Inspect for secure hold, no exposed strands.
- EASY AND SAFE USE - Our crimp butt splice terminals are made of pure copper, ensuring the highest conductivity. The butt connectors feature chamfered barrel ends for fast, easy wire insertion from both sides and a built-in wire stop for correct positioning. They work effectively for building custom wire harnesses or repairing existing wiring. Additionally, a special matte tinning process protects the butt splices from corrosion.

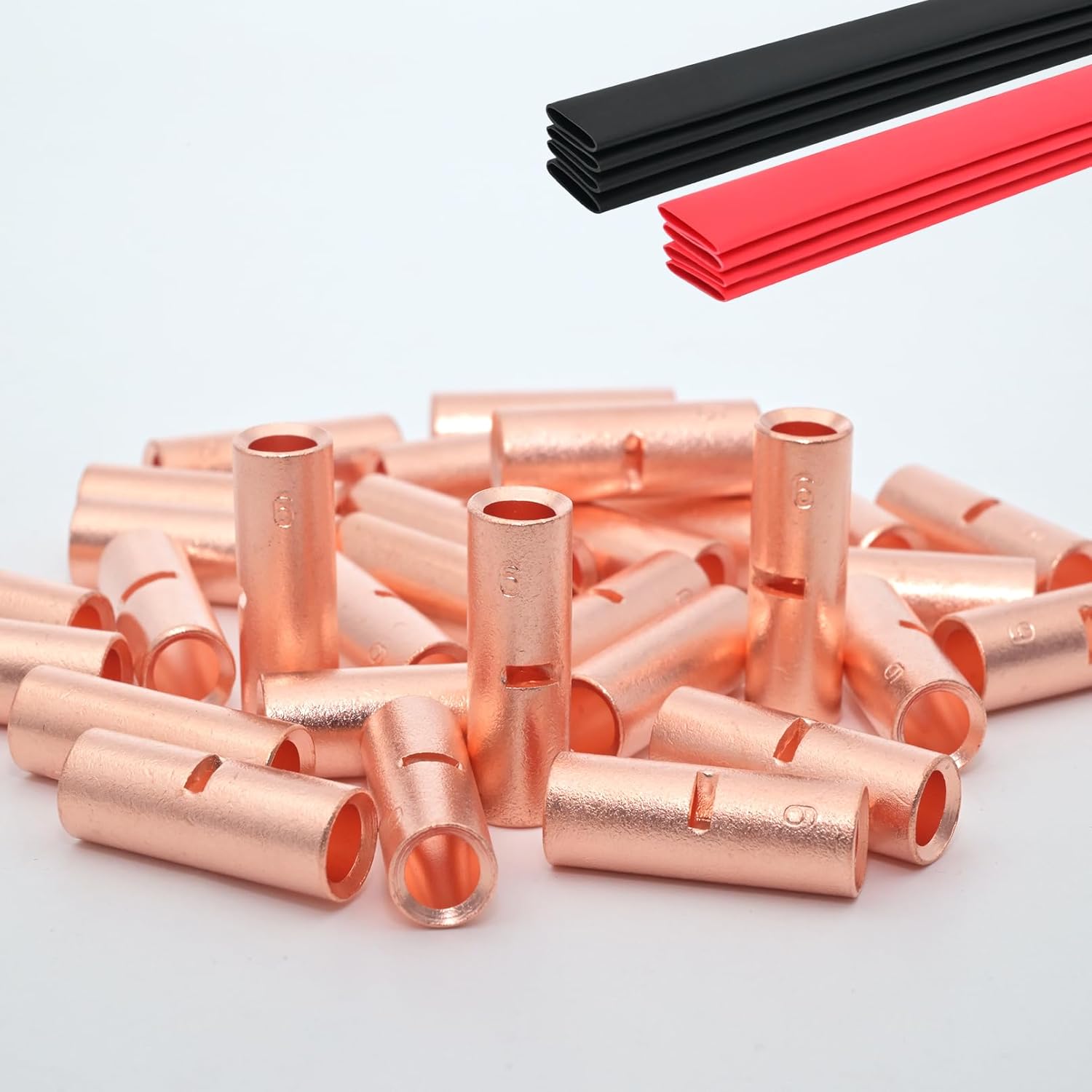

- RECOMMEND HEAT SHRINK TUBING - When using butt splice wire connectors, ensure that each wire connection can obtain the strongest, most durable, and highest-performance electrical connection, we recommend insulating your connections with dual wall, adhesive lined heat shrink tubing. With heat shrink tubing included (3 PCS Black, 3 PCS Red color), these wire butt connectors offer a secure and insulated seal. Moreover, the color-coded heat shrink helps to easily differentiate polarity, making installation hassle-free.
- BUYER CONFIDENCE - Always match the size and gauge of terminals, cables, and lugs to ensure a proper fit. It’s important use with a compatible copper cable. Recommend to double-check the dimensions and ensure they’re accurate before making a purchase. That is to say we would like the opportunity to make it right for you. Here's everything you need to get started.
| Color | Bare Pure Copper |
|---|---|
| Gauge | 3/0 AWG (BN 100) 000 Gauge |
| Model | 3/0 AWG (BN 80) Bare Pure Copper |
| Terminal | Butt Terminal |
| Stud Size | 3/0 Gauge |
| Brand Name | SVAAR |
| Unit Count | 6.0 Count |
| Part Number | 34000592 |
| Manufacturer | SVAAR |
| Material Type | 99.9% Purple Pure Copper, Copper |
| Connector Type | Crimp Butt Splice, Non-insulated Bare Copper Compression Splice, Seamless Barrel Butt Splice |
| Maximum Voltage | 600 Volts |
| Number of Items | 6 |
| Connector Gender | Male |
| Contact Material | 99.9% Purple Pure Copper,100% Annealed Copper |
| Specification Met | ISO 9001, RoHS, SGS, UL |
| Included Components | 6 PCS * 000 Gauge Butt Splice Connectors， 6 PCS * 3:1 Heat Shrink |
| Insulation Material Type | Non-Insulated |
